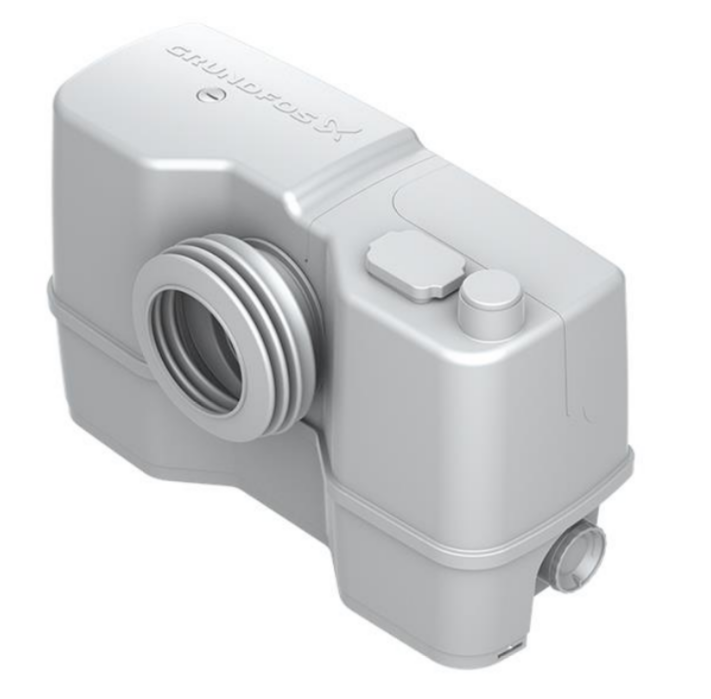

格兰富SOLOLIFT2 WC-3废污水提升站

丹麦Grundfos格兰富 SOLOLIFT2 WC-3废污水提升站适用于生活污水处理

SOLOLIFT2为小型、小巧、易于安装的自动提升站，集成了强大的切割系统。

提升站适用于泵送含有私人住宅排泄物的废水。

液体:

液体温度范围: 0 .. 50 °C

密度:  998.2 kg/m³

技术:

泵数据基于其上的泵速:  2800 转数／分钟

额定流量:  1.37 升/秒

Maximum flow:  2.48 升/秒

额定扬程:  6.21 米

Type of impeller:  VORTEX with GRINDER

Max. Particle:  25 毫米

Approvals:  CE,SEPRO,CHROHS,MORO,AAA

Curve tolerance:  ISO9906:2012 3B

材料:

泵壳:  Composite

叶轮:  Polymer - PPE

水箱:  PLASTIC

   PP

安装:

环境温度范围:  0 .. 40 °C

Type of inlet connection:  Smooth pipe

Type of outlet connection:  Smooth pipe

入口尺寸:  32/36/40, 36/40/50, DN 100

出口尺寸:  22/25/28/32/36/40

Pressure rating for pipe connection:  PN 1,5

引线数:  3X0,75MM2

电气数据:

Power input P1:  620 瓦

Rated power - P2:  0.42 千瓦

电源频率:  50 Hz

Rated voltage:  1 x 220-240 V

Rated current:  3 安

Cos phi – 功率因数:  0.92

电机极数:  2

封装等级（IEC 34-5）:  IP44

Insulation class (IEC 85):  F

Cable type:  H05VV-F-3G

Length of power cable:  1.2 米

Power plug:  SCHUKO

水箱:

Tank volume nominal:  9 升

其他:

Net weight:  7.74 千克

Gross weight:  9.27 千克

运输体积:  0.052 m3

Grundfos Sololift2 WC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off

places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural

downward slope.

Sololift2 WC-3 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with

additional connections on the lid and to the sides of the tank for e.g. washbasin, shower or bidet.

The pumping of liquids containing other material may cause faults and limit the scope of guarantee.

Sololift2 WC-3 is typically used to dewater:

toilet, washbasin, shower and bidet in basements below sewer level,

in connection with the renovation or modernisation of existing buildings, where the location

may be remote from the main soil pipe so that a natural slope cannot be established. Extremely

low switching levels for lowest construction heights, advantageously in case of connection of a shower

receptor.

The compact lifting station is equipped with

Cable with or without plug (see technical data)

Horizontal or vertical fastening possibility of discharge hose connector with several

adaptors for pipes with Ø22-40mm

Integrated non return valve

Dry and high performance motor unit incl. thermal protection, pressure switch and controller

DN100 toilet connection hose

Two flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40

Slot for an alarm board with buzzer (accessory)

Manual anti clogging function and separate drain connection for service

Venting valve with overflow protection

Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique

features focused on quick installation, long lasting operation and easy clean service.

Note: The discharge adaptor can be mounted vertical or horizontal. Vertical installation increase

the flow (s. databooklet and curves)
