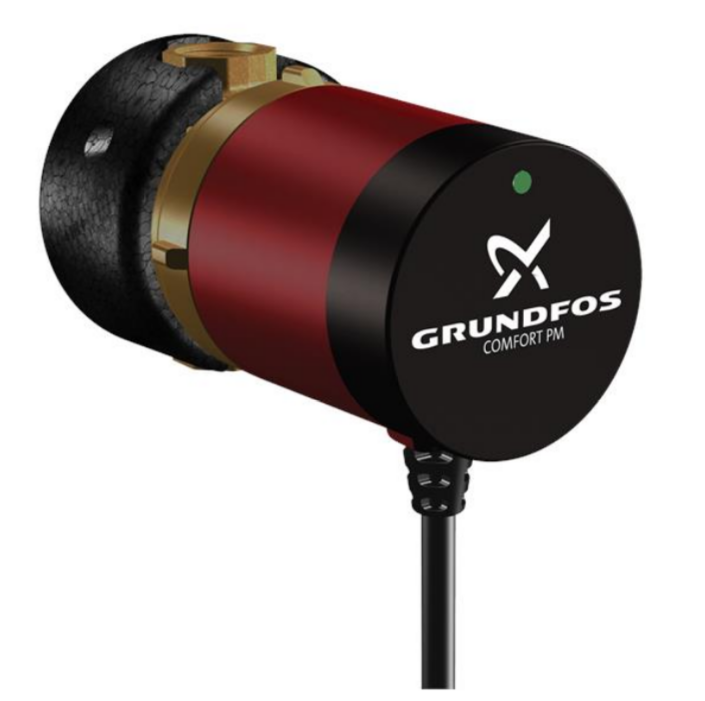

格兰富COMFORT 15-14 B PM生活热水循环泵

格兰富COMFORT 15-14 B PM热水循环泵

适用于

生活热水循环

COMFORT BASIC 是一具黄铜泵壳的节能高效热水循环泵。该泵适用于一个到两个家庭，可立即为所有水龙头提供热水

COMFORT 15-14 B PM

The Grundfos Comfort B PM and BX PM pumps are designed for recirculation of domestic hot water in

single-family and two-family houses securing hot water instantly to all faucets. The pumps have a

corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase,

high-efficiency ECM with permanent-magnet rotor. COMFORT B PM and BX PM meet homeowner requirements

for continuous operation. COMFORT BX PM has a built-in isolating valve and a non-return valve (fitting).

This ensures that maintenance can be carried out without draining the system.

The non-return valve also prevents reversed flow during operation.

产品名称

COMFORT 15-14 B PM

技术参数：

额定流量

0.45 m³/h

额定扬程

0.9 米

Maximum head

14 分米

TF等级

95

Approvals

CE,VDE,EAC,WEEE

材料

泵壳

Brass

Pump housing

CuZn39Pb3, MS58

叶轮

Composite

PES+30% GF

安装

Minimum ambient temperature

0 °C

最大运行压力

10 巴

接口型号

Rp

Size of connection

1/2 inch

Pressure rating for pipe connection

PN 10

Port-to-port length

80 毫米

液体

输送的液体

水

液体温度范围

2 .. 95 °C

运行时的液体温度

60 °C

密度

983.2 kg/m³

电气数据

最大输入功率

7 瓦

电源频率

50 / 60 Hz

Rated voltage

1 x 230 V

3速时的电流

0.07 安

电容器大小 - 运行

0.6 µF

封装等级（IEC 34-5）

IP44

Insulation class (IEC 85)

F

Built-in motor protection

ELECT.

热保护

受保护阻抗

控制器

Operation mode include

None

其他

Net weight

0.94 千克

Gross weight

1.04 千克

运输体积

0.003 m3

产地

DE
