格兰富怡盒Comfort Box 90-D-PI-B-1-STD

格兰富Comfort Box 90-D-PI-B-1-STD

格兰富怡盒ComfortBox家用燃气电热水器辅助回水泵循环泵热水盒子 Comfort Box

液体:

液体温度范围:    0 .. 70 °C

技术:

Maximum flow:    1.5 m³/h

材料:

泵壳:    铸铁

Cabinet:    Plastic

安装:

环境温度范围:    0 .. 40 °C

接口型号:    G ext. - G int.

Size of connection:    3/4 - 1/2 inch

Earth connection:    PE

电气数据:

Power input P1:    120 瓦

电源频率:    50 Hz

额定电压:    1 x 220 V

Rated current:    0.48 安

封装等级（IEC 34-5）:    IP20

其他:

Net weight:    4.24 千克

Gross weight:    5.47 千克

运输体积:    0.892 m3

产地:    CN

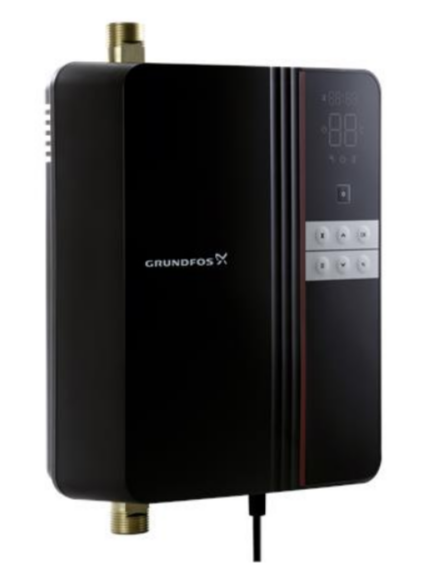

Grundfos Comfort Box 90-D-PI-B-1-STD

Grundfos Comfort Box, inspired by cobblestone as its external design, serves to create an easy instant water use experience for people who seek for a comfortable and joyful lifestyle. “Wash as your wish”, this home-appliance-like box is most suitable to offer instant hot water to households in big apartments, small villas and duplexes with 100-150m length of pipeline, especially for those who cares about life quality and interior design.

Grundfos Comfort Box is a fully integrated, compact system for hot-water circulating and pressure boosting in domestic applications. It incorporates media temperature control, time-delay control, time-program control and tap-water pulse-trigger control.

Comfort Box can be installed in three easy steps:

1. Mount the box on the wall. 2. Connect the pipes. 3. Connect the pump to the power supply.

After the installation, perform a quick start setup and switch on the pump to activate the system.

Grundfos Comfort Box has the following components necessary to ensure feeding instant hot water:

Intelligent controller

Integrated diversity of pipe connections

High-efficiency and low-noise pump

Integrated temperature and flow-switch sensor

Features

Hot-water circulation

Low noise, < 47 dB(A) (in typical use)

Compact

Robust and reliable

Easy installation

Dry-running/lock-rotor protection
